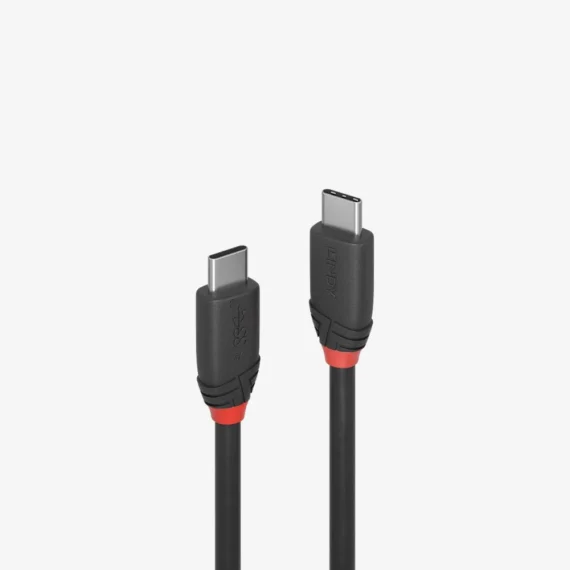

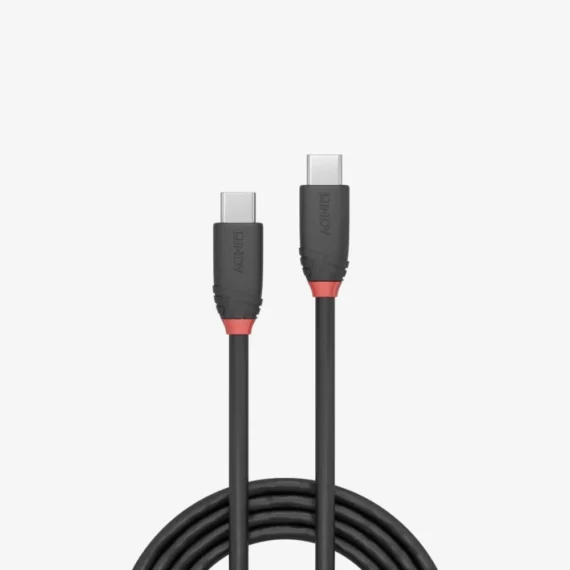

LINDY 1m USB 3.2 TYPE C TO C CABLE, 20GBPS, BLACK LINE – 36906
1m USB 3.2 Type C to C Cable 3A, Black Line
Description
Specifications
About Brand
Reviews (0)
Description
- Entry level USB 3.2 Gen 2×2 Type C to C, 3A (60W), cable for home and small office applications
- SuperSpeed USB 20Gbps – supports data transfer speeds up to 20Gbps and DisplayPort Alternate Mode
- Robust PVC housing, nickel connectors, gold plated contacts
- Triple shielded cable, corrosion resistant tinned copper conductors
- The Black Line USB 3.2 Type C to C cables from Lindy’s Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
- Black Line USB 3.2 Type C to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
- USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. It supports DisplayPort Alternate Mode at max. 4K 60Hz.
- USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
- Black Line USB 3.2 Type C to C cables are available in the following lengths: 0.5m, 1m and 1.5m.
- We have adapted the naming of our USB 3 cables to follow the updated USB specification.
- USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
- USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
- USB 3.2 Gen 2×2 is a new standard, supporting data transfer rates up to 20 Gbps
- USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Specifications
- Product Number: 36906
- Connector A: USB 3.2 Type C Male
- Connector B: USB 3.2 Type C Male
- Housing Material: PVC
- Shielding in head shell: Copper foil
- Connector Plating: Nickel
- Pin Construction: Copper
- Pin Plating: Gold
- Dimensions (approx.) WxDxH: 11.0×25.5×7.3mm (0.43×1.00×0.29in)
- Length: 1m (3.28ft)
- Standard: USB 3.2 Gen 2×2
- Power Delivery: –
- Max. Power: 60W (20V 3A, Standard Power Range (SPR))
- Colour: Black
- Type: Round
- Jacket Diameter: 4.5mm (0.18in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge Power: 24AWG
- Conductor Gauge Data: 32AWG
- Shielding: Tinned Copper Braid 86%
- Supported Bandwidth: 20Gbps
- Maximum Resolution: 4K 4096×2160@60Hz
- Nominal Attenuation: 0.5Mhz – 15Ghz < 40dB
- Minimum Bend Radius: 45mm (1.77in)
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: 0°C – 70°C (32°F – 158°F)
