LINDY HIGH SPEED HDMI FEMALE TO FEMALE COUPLER, BLACK – 41656
HDMI Female to Female Coupler, Black
Description
Specifications
About Brand
Reviews (0)
Description
- High quality coupler which can be used to connect two HDMI cables together for extended distances
- Supports High Speed 18Gbps resolutions up to 4K@60Hz 4:4:4 8Bit

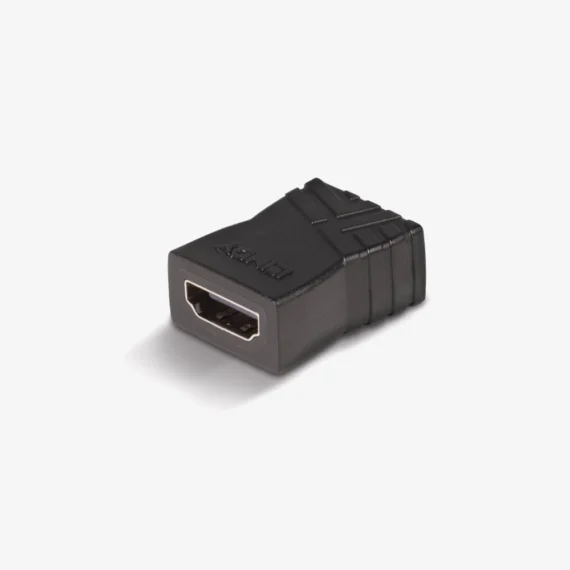

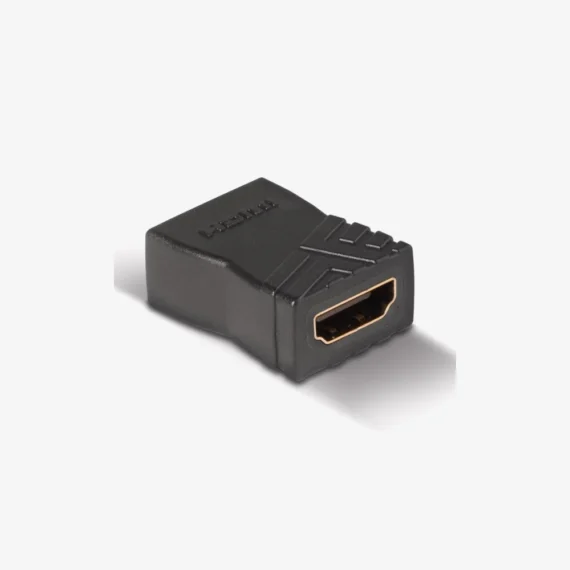

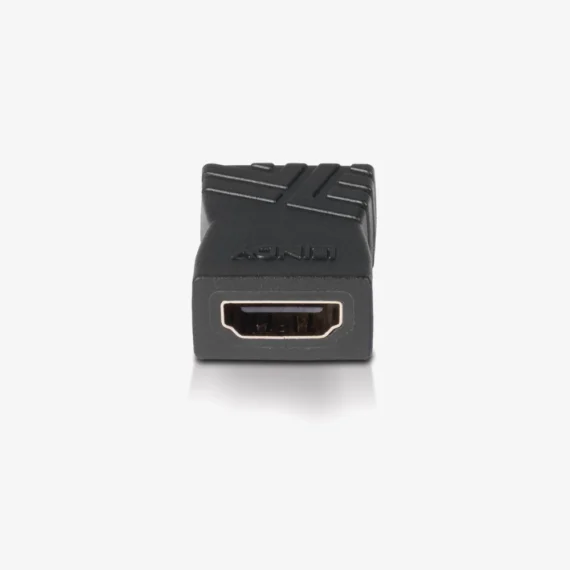

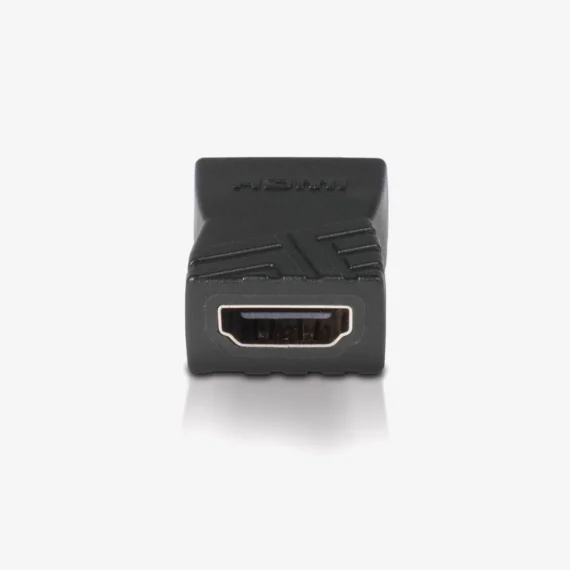

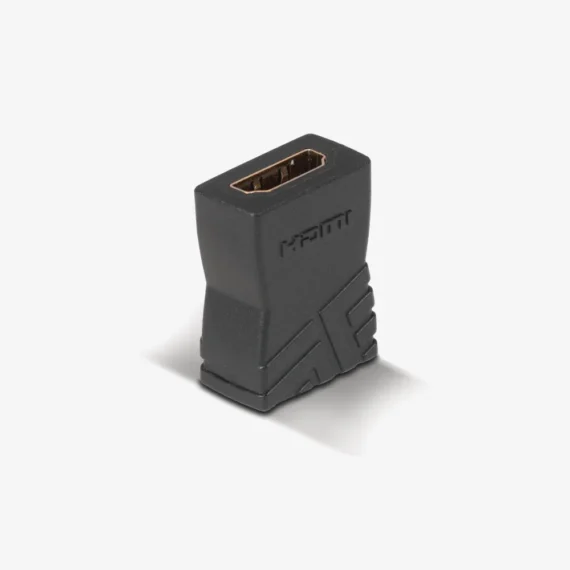

- Compact PVC housing with gold plated contacts and HDMI Female to Female connectors
- Supports all HDMI features including 3D, Audio Return Channel (ARC), Ethernet and HDCP
- The Lindy High Speed HDMI Female to Female Coupler is designed to extend a pre-installed HDMI cable by attaching two HDMI cables from either end of the Female adapter, perfect for domestic, commercial and educational applications.
- Please note: The maximum distance and resolution capable will be determined by the quality of the HDMI cables you are using. We recommend our Anthra Line cables for the Maximum resolution of 4K@60hz at a total distance of 5m [e.g 3m in, 2m out], longer distances are possible at a lower resolution such as 1080p.
Specifications
- Product ID:41656
- Connector A: HDMI Female
- Connector B: HDMI Female
- Housing Material: PVC
- Connector Plating: Gold
- Pin Construction: Gold
- Pin Plating: Gold
- Dimensions (approx.) WxDxH: 29x23x12mm (1.14×0.91×0.47in)
- Supported Bandwidth: 18Gb/s
- Maximum Resolution: 4K UHD 3840×2160@60Hz 4:4:4 8bit
- Nominal Attenuation: –
- Minimum Bend Radius: –
- Operating Temperature: -10°C – 50°C (14°F – 122°F)
- Storage Temperature: 0°C – 40°C (32°F – 104°F)
- Packaging Type: Polybag
- Product Compliance: RoHS, REACH, UKCA
