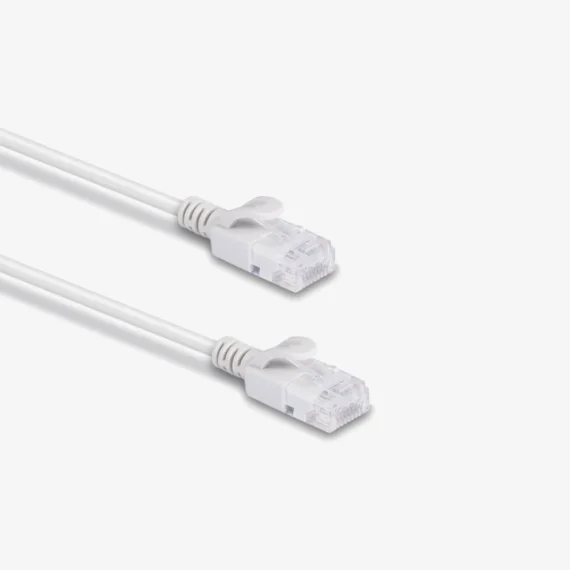

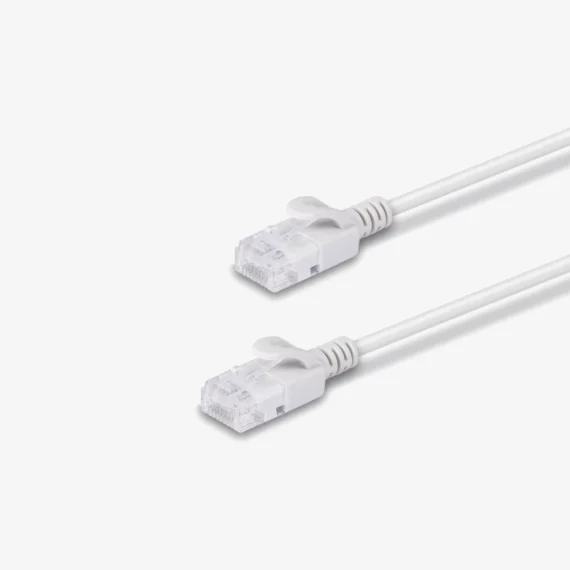

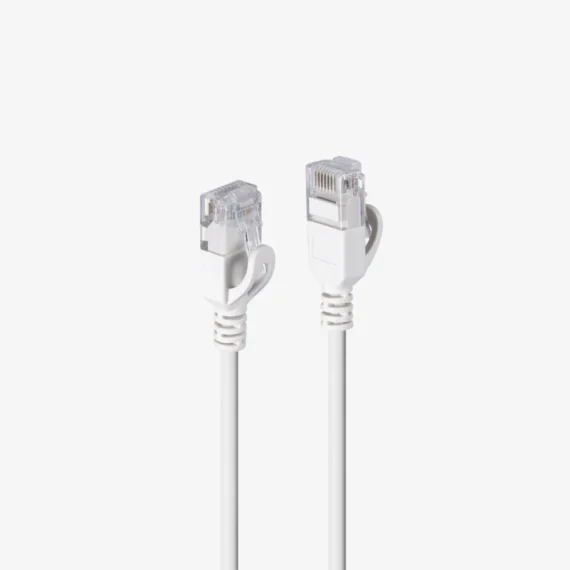

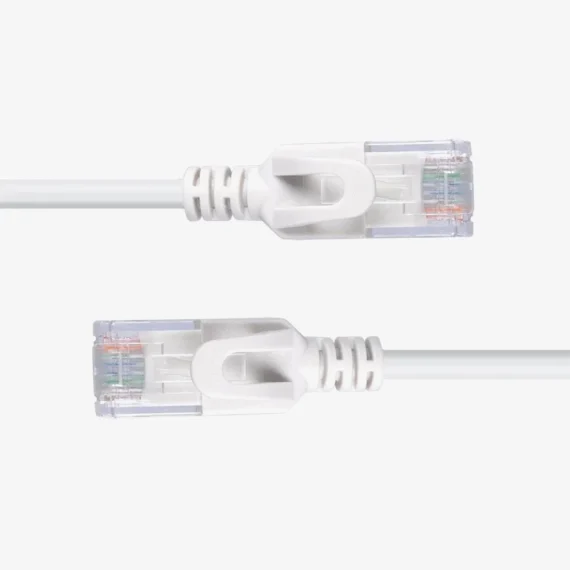

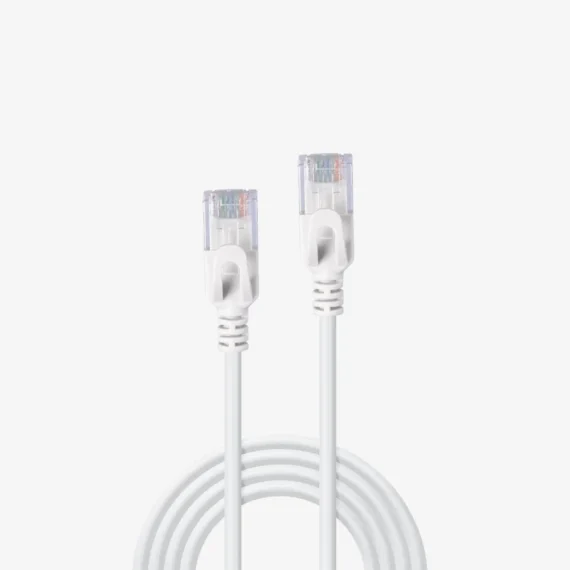

LINDY 0.5m CAT.6A U/FTP ULTRA SLIM NETWORK CABLE, GREY – 47591
0.5m Cat.6A U/FTP Ultra Slim Network Cable, Grey
Description
Specifications
About Brand
Reviews (0)
Description
- Twisted Pair Patch Cable with RJ45 connectors
- Super slim cable for easy installation in tight spaces – only 3.6mm diameter, half the size of standard Ethernet cable
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
- Cat.6A U/FTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
- Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (U/FTP). Designed as an ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
- The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
- The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.
- Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.
Specifications
- Product ID: 47591
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Brass
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11x28x6mm (0.43×1.10×0.24in)
- Length: 0.5m (1.64ft)
- Colour: Grey
- Type: Cat.6A
- Jacket Diameter: 3.6mm (0.07in)
- Jacket Material: PVC
- Conductor Material: Bare Copper
- Conductor Gauge: 30AWG
- Shielding: Aluminium Foil
- Supported Bandwidth: 500MHz
- Nominal Attenuation: 49.3dB/100m @ 500MHz
- Minimum Bend Radius: 60mm (2.36in)
- Operating Temperature: -10°C – 60°C (14F – 140°F)
- Storage Temperature: -10°C – 40°C (14F – 104°F)
