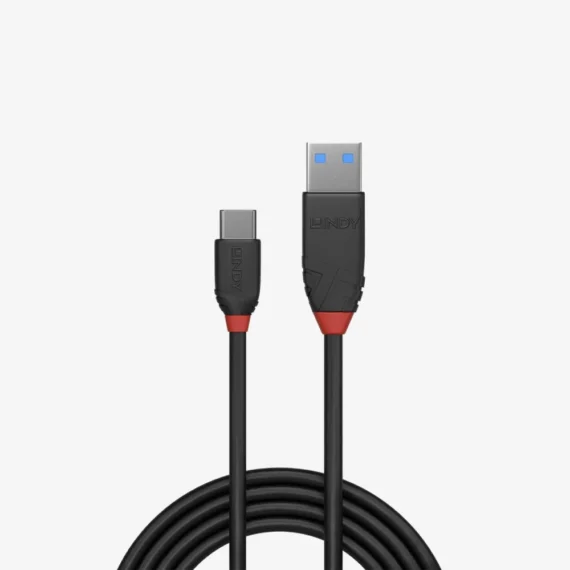

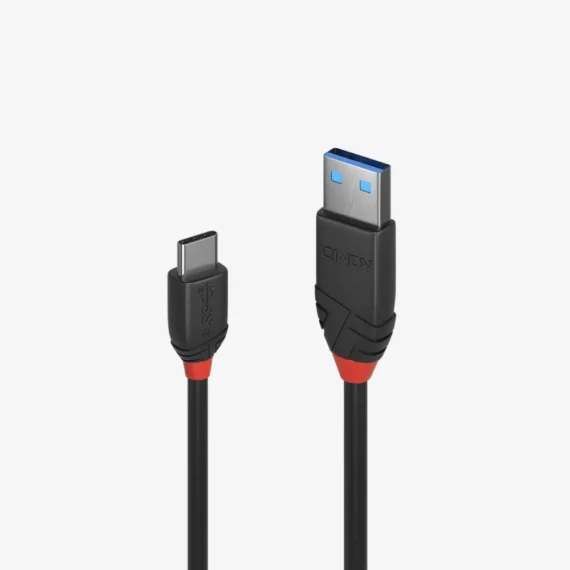

LINDY 1.5m USB 3.2 TYPE A TO C CABLE, 10GBPS, BLACK LINE – 36917
1.5m USB 3.1 Type A to C Cable 3A, Black Line
Description
Specifications
About Brand
Reviews (0)
Description
- Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications
- SuperSpeed USB 10Gbps – supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
- Robust PVC housing, nickel connectors, gold plated contacts
- Triple shielded cable, corrosion resistant tinned copper conductors
- The Black Line USB 3.2 Type A to C cables from Lindy’s Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
- Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
- USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.
- USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
- Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.5m, 1m and 1.5m.
- We have adapted the naming of our USB 3 cables to follow the updated USB specification.
- USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
- USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
- USB 3.2 Gen 2×2 is a new standard, supporting data transfer rates up to 20 Gbps
- USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Specifications
- Product Number: 36917
- Connector A: USB 3.2 Type A Male
- Connector B: USB 3.1 Type C Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: Phosphor Bronze
- Pin Plating: 24K Gold plated
- Dimensions (approx.) WxDxH:.
- A: 15.5×35.1×7.8mm (0.61×1.38×0.31in)
- C: 11.0×25.5×7.3mm (0.43×1.00×0.29in)
- Length: 1.5m (4.92ft)
- Standard: USB 3.2 Gen 2
- Colour: Black
- Type: Round
- Jacket Diameter: 4.5mm (0.18in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge Power: 26AWG
- Conductor Gauge Data: 30AWG
- Shielding: Aluminium Magnesium Braid 85%
- Supported Bandwidth: 10Gbps
- Maximum Resolution: –
- Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
- Minimum Bend Radius: 45mm (1.77in)
- Operating Temperature: -20°C – 80°C (-4°F – 176°F)
- Storage Temperature: -25°C – 85°C (-13°F – 185°F)
- ATC Approved: –
