Are all HDMI cables the same?

No, HDMI cables are not all the same. While HDMI is a digital standard, which means either the signal works or it doesn’t, it’s not immune to interferences and signal degradation, particularly over longer lengths. The purity of the copper, overall cable quality, and connector construction significantly impact performance, so you can get a dramatically longer-lasting cable that transfers a better signal. High-quality cables, like Lindy’s Gold Line of HDMI and DisplayPort cables, illustrate how cable variations can make a difference. These cables offer enhanced signal transmission and outstanding durability, underlining the importance of choosing the right HDMI cable, particularly in more demanding or longer-distance setups.

What is the ideal length for HDMI cables?

The ideal length for HDMI cables varies depending on the quality needed. For most HDMI cables, lengths between 1.5 to 3 meters are suitable for regular use. At 3 to 5 meters, a more premium cable is essential to maintain signal integrity. Beyond 5 meters, top-notch quality becomes crucial, and cutting corners with a cheaper cable may result in signal degradation, making it imperative to invest in a reliable, premium HDMI cable.

What is the best type of cable for phones?

For versatility and durability, braided cables like the j5create JUCX24 are excellent choices. These cables are not only capable of data transfers but also charging, making them versatile and durable. They are a great example of HDMI cables that provide both robust construction and functionality, ensuring reliable connections and the ability to charge devices while delivering high-quality audio and video signals.

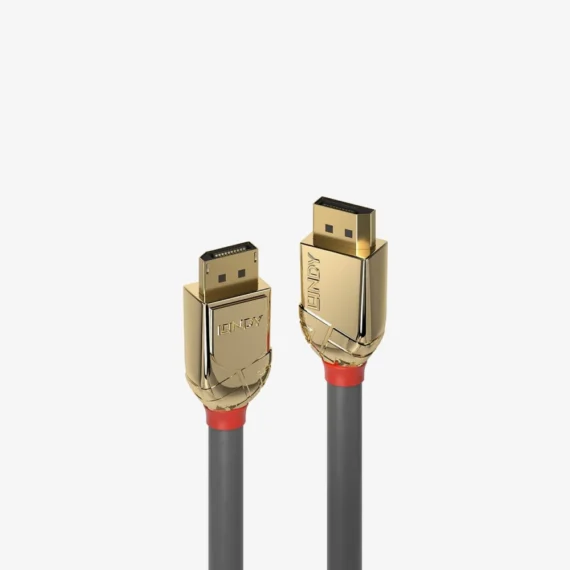

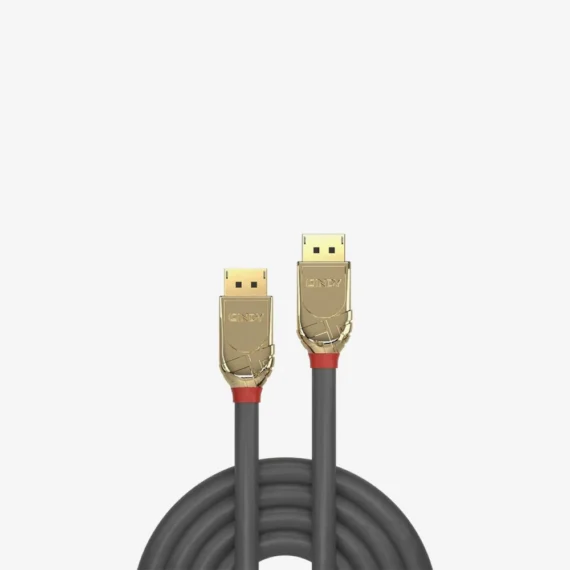

LINDY 10m DISPLAYPORT 1.2 CABLE, GOLD LINE – 36296

(0 reviews)

10m DisplayPort Cable, Gold Line

Enquire Now

Sku:

36296

Description

No compromise, ultimate performance DisplayPort cable for demanding environments and mission critical systems
Supports UHD resolutions up to 4096×2160@60Hz 4:4:4 8bit
Full metal 24K gold plated housing, 24K gold plated connectors and contacts
Low attenuation triple shielded cable, corrosion resistant, high performance OFC 24AWG conductors
DisplayPort 1.2 compliant: 3D, 4K, 21.6Gbps, DisplayPort Certified
From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.

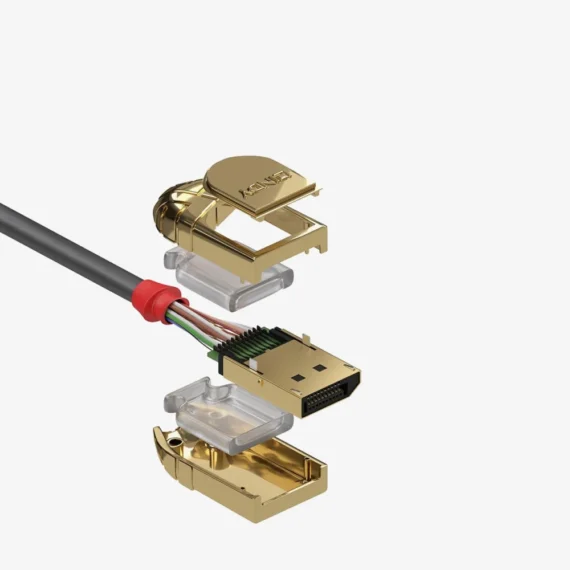

Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.
Gold DisplayPort cables are available in lengths from 0.5m to 20m.

Specifications

Product Number: 36296
Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: 24 Gold Plated Zinc Alloy
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15µm
Dimensions (approx.) WxDxH: 19.8×42.5×12.5mm (0.78×1.67×0.49in)
Length: 10m (32.81ft)
Standard: DisplayPort 1.2
Colour: Grey
Type: Round
Jacket Diameter: 9mm (0.35in)
Jacket Material: PVC
Conductor Material: OFC Copper
Conductor Gauge: 24AWG
Shielding: Copper Braid 85%
Supported Bandwidth: 21.6 Gbps
Maximum Resolution: 4096×2160@60Hz 4:4:4 8bit
Nominal Attenuation: 300kHz-825MHz
Minimum Bend Radius: 90mm (3.5in)
Operating Temperature: -20°C – 80°C (-4°F – 176°F)
Storage Temperature: -25°C – 80°C (-13°F – 176°F)
