Are all HDMI cables the same?

No, HDMI cables are not all the same. While HDMI is a digital standard, which means either the signal works or it doesn’t, it’s not immune to interferences and signal degradation, particularly over longer lengths. The purity of the copper, overall cable quality, and connector construction significantly impact performance, so you can get a dramatically longer-lasting cable that transfers a better signal. High-quality cables, like Lindy’s Gold Line of HDMI and DisplayPort cables, illustrate how cable variations can make a difference. These cables offer enhanced signal transmission and outstanding durability, underlining the importance of choosing the right HDMI cable, particularly in more demanding or longer-distance setups.

What is the ideal length for HDMI cables?

The ideal length for HDMI cables varies depending on the quality needed. For most HDMI cables, lengths between 1.5 to 3 meters are suitable for regular use. At 3 to 5 meters, a more premium cable is essential to maintain signal integrity. Beyond 5 meters, top-notch quality becomes crucial, and cutting corners with a cheaper cable may result in signal degradation, making it imperative to invest in a reliable, premium HDMI cable.

What is the best type of cable for phones?

For versatility and durability, braided cables like the j5create JUCX24 are excellent choices. These cables are not only capable of data transfers but also charging, making them versatile and durable. They are a great example of HDMI cables that provide both robust construction and functionality, ensuring reliable connections and the ability to charge devices while delivering high-quality audio and video signals.

LINDY 10m USB 2.0 TYPE A TO B ACTIVE CABLE – 42761

(0 reviews)

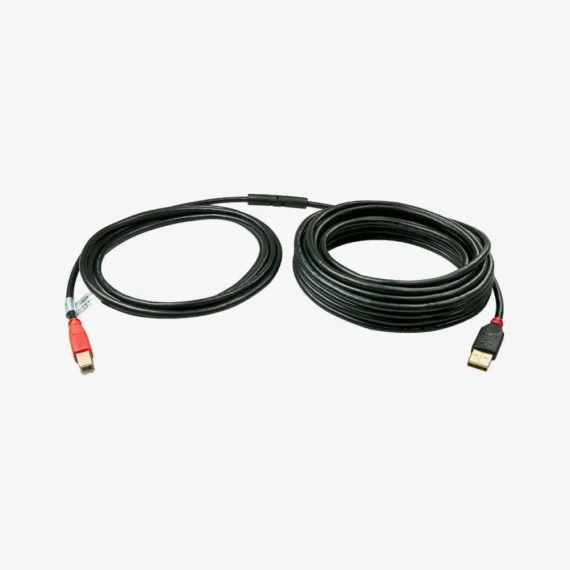

10m USB 2.0 Active Cable – Type A to B

Enquire Now

Sku:

42761

Description

10 metre USB 2.0 Active Repeater Cable
Supports transfer rates up to 480Mbps
Ideal for direct device connection
Plug & Play installation
The Lindy USB 2.0 Active Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 10m whilst continuing to support data transfer rates of up to 480Mbps.
With USB A male and USB B male connectors this product allows Type B devices like printers to be connected directly at longer distances and ensures flexible positioning.
The Lindy USB 2.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable’s unique and slim design allows easy installation due to the active electronics that are housed in a small cable mould – an advantage over other active USB leads which use bulky connectors.
It is recommended that this extender is used with low power or self powered USB peripherals and not high power consuming devices.

Specifications

Product ID:42761

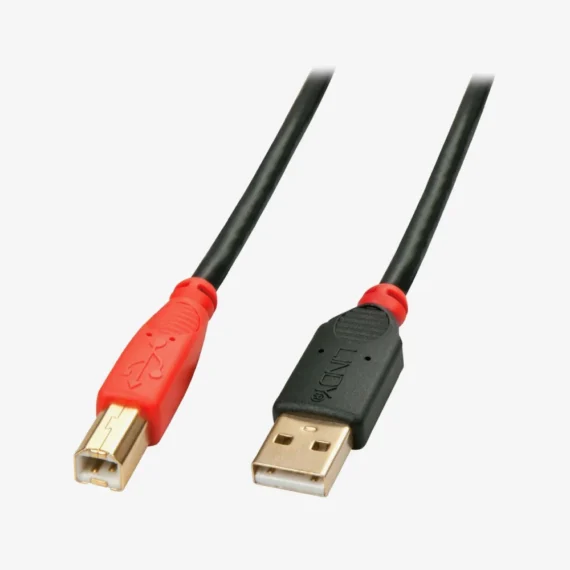

Connector A: USB Type A Male
Connector B: USB Type B Male
Housing Material: Plastic
Connector Plating: Front: Gold / Back: Nickel
Pin Construction: Brass
Pin Plating: Gold Flash
Dimensions (approx.) WxDxH:
USB A Male: 14x41x6mm (0.55×1.61×0.24in)
USB B Male: 10x41x10mm (0.39×1.61×0.39in)
Length: 10m (32.8ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)
Jacket Material: Half matt PVC low toxic
Conductor Material: Tinned Copper
Conductor Gauge: 26/20AWG
Shielding: AL Mylar and braid
Supported Bandwidth: 480 Mbps
Nominal Attenuation:
(0.064 MHz, -0.08 dB)
(0.256MHz, -0.11 dB)
(0.512MHz, -0.13 dB)
(0.772 MHz, -0.15 dB)
(1 MHz, -0.2 dB)
(4 MHz, -0.39 dB)
(8 MHz, -0.57 dB)
(12 MHz, -0.76 dB)
(24 MHz, -0.95 dB)
(48 MHz, -1.35dB)
(96 MHz, -1.9 dB)
(200 MHz, -3.2 dB)
(400 MHz, -5.8 dB)
Minimum Bend Radius: 26mm (1.02in)
Maximum Tensile Load: –
Operating Temperature: 0°C – 50°C (32°F – 122°F)
Storage Temperature: -20°C – 60°C (-4°F – 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 2.0
