Are all HDMI cables the same?

No, HDMI cables are not all the same. While HDMI is a digital standard, which means either the signal works or it doesn’t, it’s not immune to interferences and signal degradation, particularly over longer lengths. The purity of the copper, overall cable quality, and connector construction significantly impact performance, so you can get a dramatically longer-lasting cable that transfers a better signal. High-quality cables, like Lindy’s Gold Line of HDMI and DisplayPort cables, illustrate how cable variations can make a difference. These cables offer enhanced signal transmission and outstanding durability, underlining the importance of choosing the right HDMI cable, particularly in more demanding or longer-distance setups.

What is the ideal length for HDMI cables?

The ideal length for HDMI cables varies depending on the quality needed. For most HDMI cables, lengths between 1.5 to 3 meters are suitable for regular use. At 3 to 5 meters, a more premium cable is essential to maintain signal integrity. Beyond 5 meters, top-notch quality becomes crucial, and cutting corners with a cheaper cable may result in signal degradation, making it imperative to invest in a reliable, premium HDMI cable.

What is the best type of cable for phones?

For versatility and durability, braided cables like the j5create JUCX24 are excellent choices. These cables are not only capable of data transfers but also charging, making them versatile and durable. They are a great example of HDMI cables that provide both robust construction and functionality, ensuring reliable connections and the ability to charge devices while delivering high-quality audio and video signals.

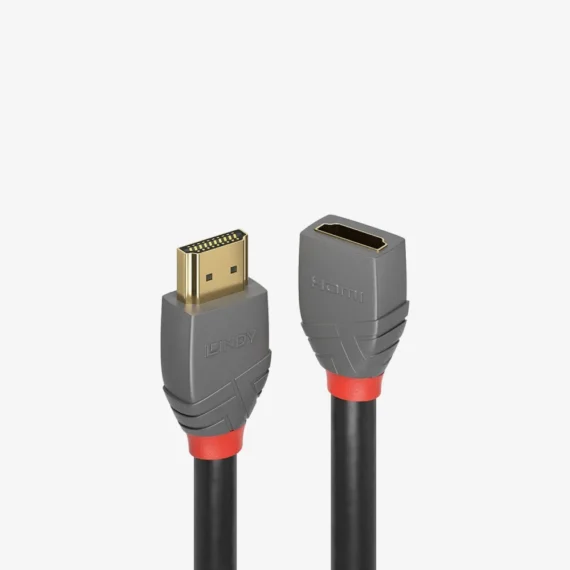

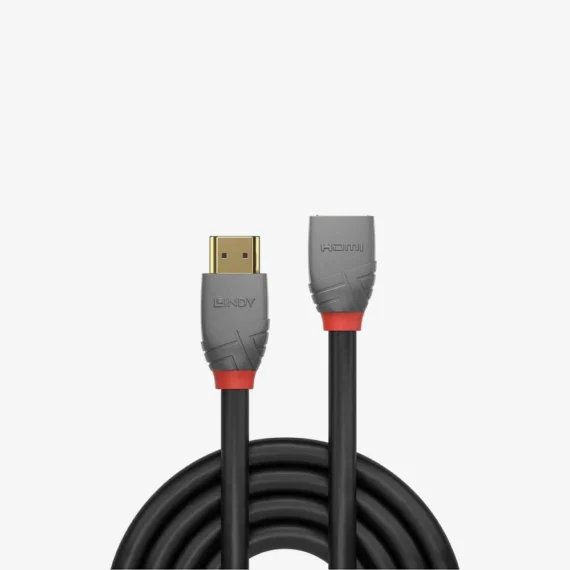

LINDY 2m HIGH SPEED HDMI EXTENSTION CABLE, ANTHRA LINE – 36477

(0 reviews)

2m HDMI 18G Extension Cable, Anthra Line

Enquire Now

Sku:

36477

Description

Superior performance and design High Speed HDMI 2.0 cable
Supports UHD resolutions up to 4096×2160@60Hz 4:4:4 8bit
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant bare copper 28AWG conductors
HDMI 2.0 compliant, 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 28AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 18Gbps bandwidth capacity in cable lengths from 0.5m up to 3m.

Specifications

Product Number: 36477
Connector A: HDMI Type A Male
Connector B: HDMI Type A Female
Housing Material: PVC
Connector Plating: Gold
Pin Construction: Copper Alloy
Pin Plating: Gold
Dimensions (approx.) WxDxH: M: 19.5×35.0x11.0mm (0.75×1.38×0.43in)
F: 20.5×35.0x11.0 (0.81×1.38×0.43in)
Length: 2m (6.561ft)
Standard: HDMI 2.0
Colour: Black
Type: Round
Jacket Diameter: 7.0mm (0.28n)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 28AWG
Shielding: Aluminium Magnesium Alloy 85%
Supported Bandwidth: 18Gbps
Maximum Resolution: 4096×2160@60Hz 4:4:4 8bit
Nominal Attenuation: 1.35GHz > -5.5dB (HBR1)
2.7GHz > -8.5dB (HBR2)
4.05GHz > -11.0dB (HBR3)
Minimum Bend Radius: 70mm (2.76in)
Operating Temperature: -10°C – 80°C (14°F – 176°F)
Storage Temperature: -20°C – 85°C (-4°F – 185°F)
