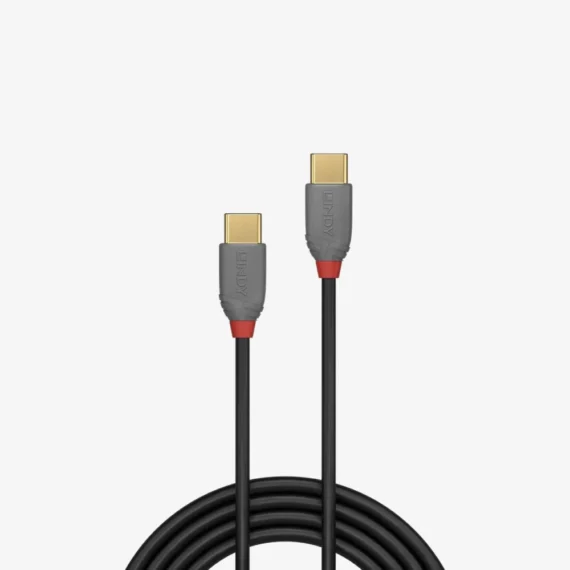

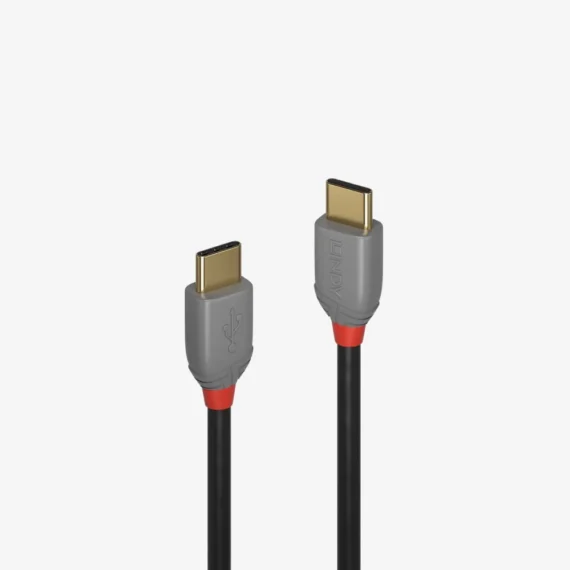

Lindy 36872 2m USB 2.0 Type C Cable, Anthra Line
Lindy 36872 anthra Line USB 2.0 cables are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance.
Description
Professional choice USB 2.0 Type C to C cable for commercial and high performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, gold plated connectors and contacts
Double shielded cable, corrosion resistant tinned copper conductors
10 year warranty
The Anthra Line USB 2.0 Type C to C cables from Lindy’s Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations. High quality gold plated contacts and connectors maintain signal integrity and reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Specifications
Product ID: 36872
Connectors
Connector A: USB 2.0 Type C Male
Connector B: USB 2.0 Type C Male
Housing Material: PVC
Shielding in head shell: Copper foil
Connector Plating: Gold
Pin Construction: Copper
Pin Plating: Gold
Dimensions, (approx.) WxDxH: 11.0×25.5×7.3mm (0.43×1.00×0.29in)
Cable Construction
Length: 2m (6.56ft)
Standard: USB 2.0
Power Delivery: –
Max. Power: 60W (20V 3A)
Colour: Black
Type: Round
Jacket Diameter: 4.5mm (0.18in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge Power: 24AWG
Conductor Gauge Data: 28AWG
Shielding: Aluminium Magnesium Braid 57%
Specifications
Supported Bandwidth: 480Mbps
Maximum Resolution: –
Nominal Attenuation: 0.5-400Mhz < 5.8dB
Minimum Bend Radius: 45mm (1.77in)
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Storage Temperature: 0°C – 70°C (32°F – 158°F)
