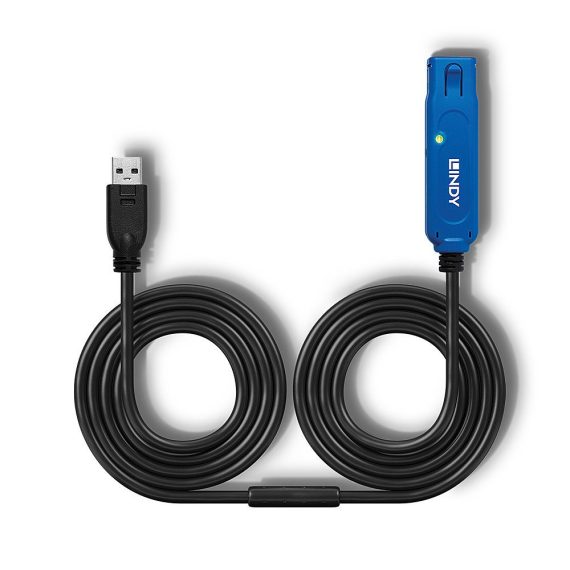

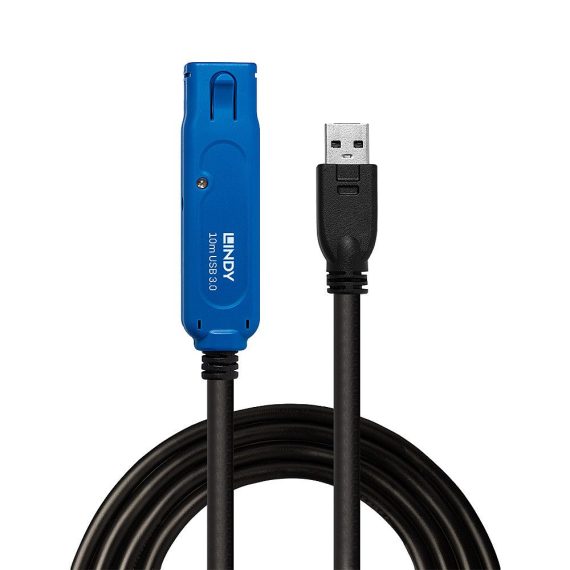

Lindy 43157 10M USB 3.0 Active Extension Cable Pro
10m USB 3.0 Active Ext Cable Pro Type A Male to Female
Description
High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of about 40m (depending on the cable configurations used)
Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
Easy to use – connect to the device’s existing USB cable (2m maximum)
2-year warranty
This 10m extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used).
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Specifications
Product ID: 43157
Connector A: USB Type A Male
Connector B: USB Type A Female
Power: 2.5/0.7mm DC Connector
Housing Material: Plastic
Connector Plating: Nickel
Pin Construction: Brass
Pin Plating: Gold Flash
Dimensions (approx.) WxDxH:
USB A Male: 15x49x8mm (0.59×1.93×0.31in)
USB A Female: 20x80x13mm (0.79×3.15×0.51in)
Cable Construction
Length: 10m (32.81ft)
Standard: USB 3.1 Gen 1 / 3.0
Colour: Black
Type: Round
Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
Jacket Material: Half matt PVC low toxic
Conductor Material: Tinned Copper
Conductor Gauge: 24/24/20AWG
Shielding: AL Mylar and braid
Specifications
Supported Bandwidth: 5 Gbps
Nominal Attenuation:
0.064MHz – <0.08dB
0.256MHz – <0.11dB
0.512MHz – <0.13dB
0.772MHz – <0.15dB
1.0MHz – <0.20dB
4MHz – <0.39dB
8MHz – <0.57dB
12MHz – <0.67dB
24MHz – <0.95dB
48MHz – <1.35dB
96MHz – <1.90dB
200MHz – <3.20dB
400MHz – <5.80dB
Minimum Bend Radius: 36mm (1.42in)
Maximum Tensile Load: –
Operating Temperature: 0°C – 50°C (32°F – 122°F)
Storage Temperature: -20°C – 60°C (-4°F – 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.1 Gen 1 / 3.0
