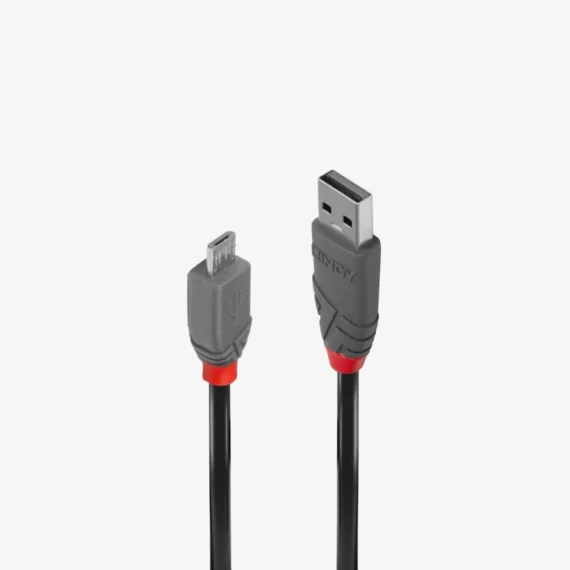

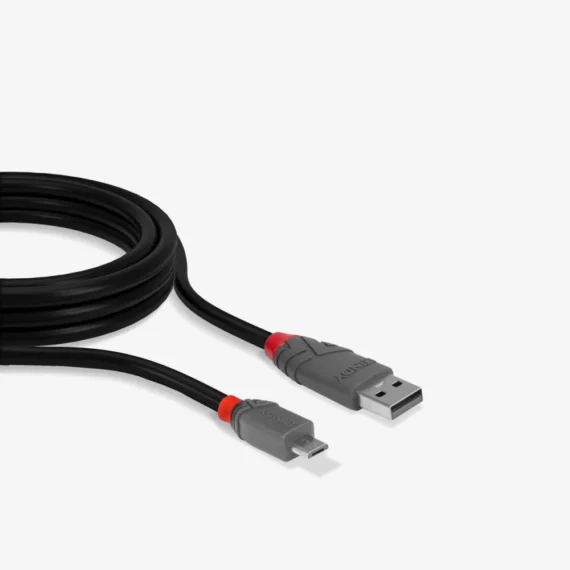

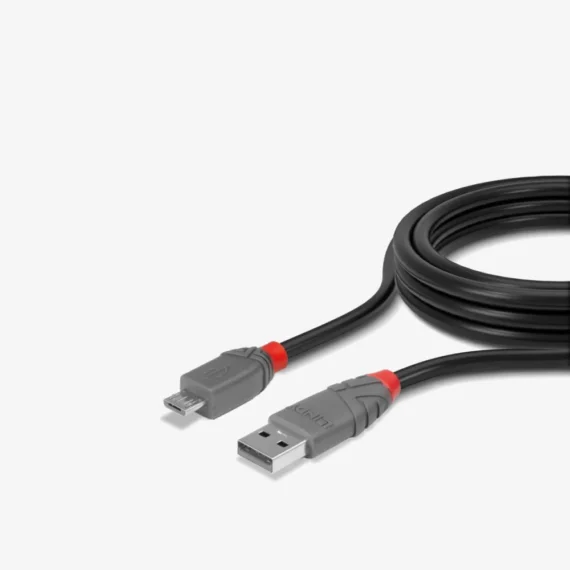

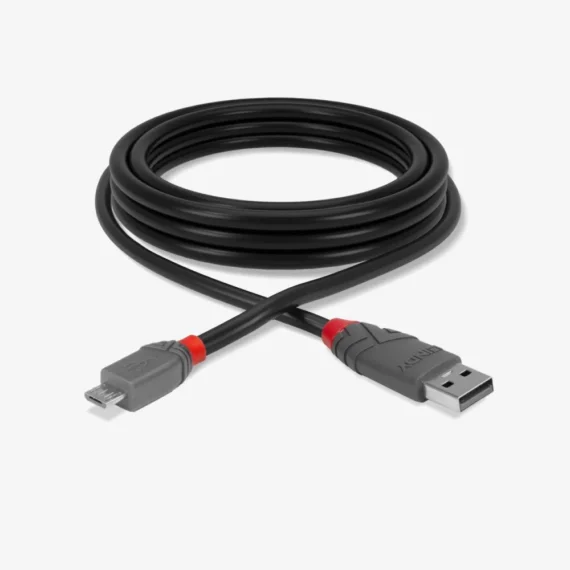

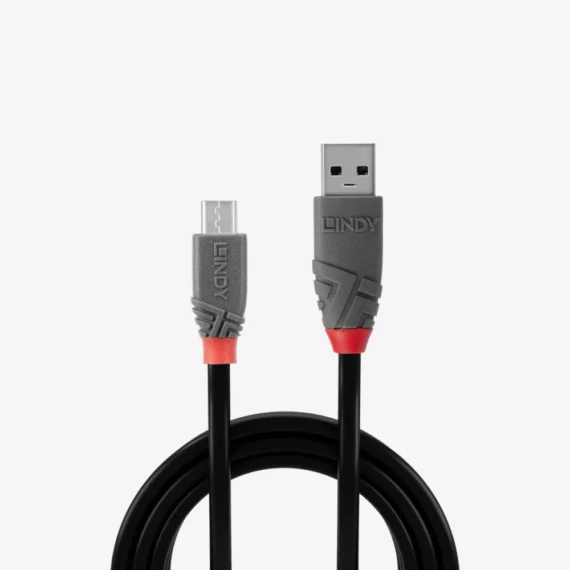

LINDY 5m USB 2.0 TYPE A TO MICRO-B CABLE, ANTHRA LINE – 36735
5m USB 2.0 Type A to Micro-B Cable, Anthra Line
Description
Specifications
About Brand
Reviews (0)
Description
- Professional choice USB 2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contacts
- Double shielded cable, corrosion resistant tinned copper conductors
- From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.
- Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.
- Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
- Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.
Specifications
- Product Number: 36735
- Connector A: USB 2.0 Type A Male
- Connector B: USB 2.0 Type Micro-B Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: Copper
- Pin Plating: 24K Gold
- Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61×1.38×0.31in)
- Dimensions, USB Micro-B (approx.) WxDxH: 10x24x7.6mm (0.29×0.95×0.30in)
- Length: 5m (16.44ft)
- Standard: USB 2.0
- Colour: Black
- Type: Round
- Jacket Diameter: 3.5mm (0.14in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 28AWG
- Shielding: Aluminium Magnesium Braid
- Supported Bandwidth: 480Mbps
- Maximum Resolution: –
- Nominal Attenuation: 5.8db/km
- Minimum Bend Radius: 16mm (0.63in)
- Operating Temperature: 0°C – 60°C (32°F – 140°F)
- Storage Temperature: 0°C – 60°C (32°F – 140°F)
