LINDY 5m USB 3.2 GEN 1 C/C ACTIVE EXTENSION – 43271
5m USB 3.1 Active Extension Cable Type C to C
Description
Specifications
About Brand
Reviews (0)
Description
- 5 metre USB 3.2 Active Extension Repeater Lead
- Supports transfer rates up to 5Gbps
- DC socket for connection of an optional external power supply
- For even greater distances simply connect 2 cables in series
- The Lindy USB 3.2 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps.

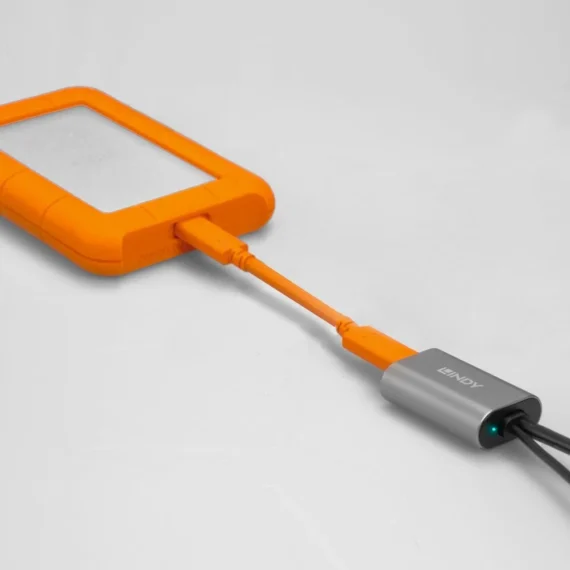

- With a reversible Type C input connector and Type C female port, this extension cable allows Type C devices such as flash drives, smartphones or tablets to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C input device is hard to repeatedly access or when connecting USB devices that can be used at a distance such as multi-interface Type C hubs.
- Compatible with all USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
- The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.
- Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported
- USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
- USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
- USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
- Product ID:43271
- Connector A: USB Type C Male
- Connector B: USB Type C Female
- Power: 3.5/1.35mm DC Connector
- Housing Material: Aluminium
- Connector Plating: Nickel plated shell
- Pin Construction: Copper
- Pin Plating: Gold
- Dimensions (approx.) WxDxH:
- USB C Male: 11.65x36x6.5mm (0.46×1.42×0.26in)
- USB C Female: (housing): 28.6x45x14.1mm (1.13×1.77×0.56in)
- Length: 5m (16.4ft)
- Standard: USB 3.1 Gen 1 / 3.0
- Colour: Black
- Type: Round
- Jacket Diameter: 4.6mm (0.18in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 28AWG+28AWG+22AWG
- Shielding: 85% TC
- Supported Bandwidth: 5Gbps
- Nominal Attenuation: –
- Minimum Bend Radius: 36mm (1.42in)
- Maximum Tensile Load: –
- Operating Temperature: 0°C to 40°C (32°F – 104°F)
- Storage Temperature: -10°C to 60°C (14°F – 140°F)
- Transmission Medium: Twisted Pair
- Transmission Technology: USB 3.1 Gen 1 / 3.0
