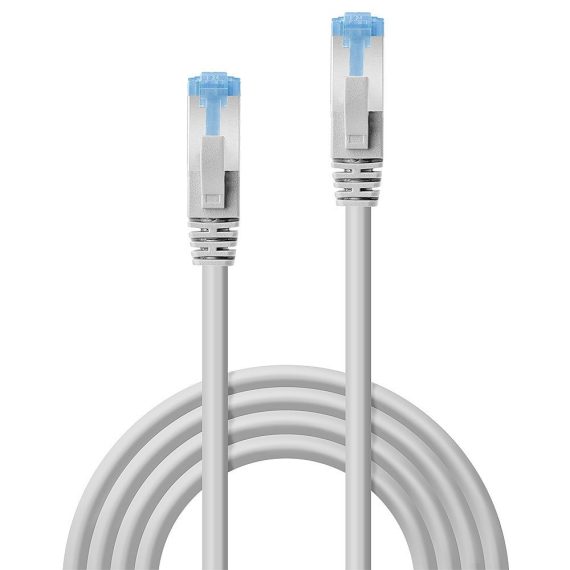

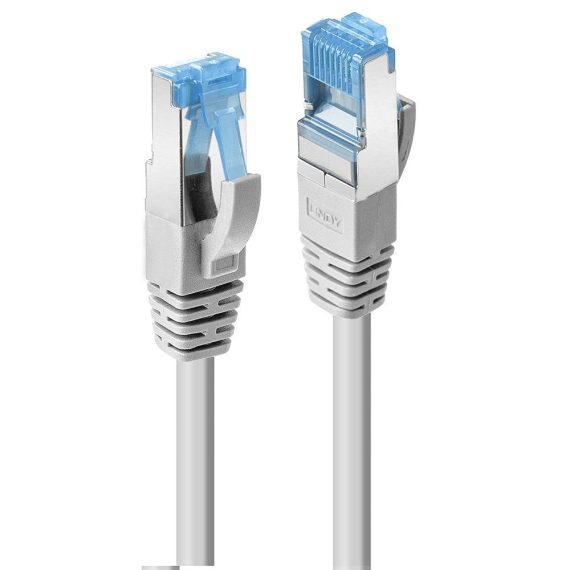

Twisted Pair Patch Cable with RJ45 connectors
Cat.6A S/FTP PIMF, LSZH
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.5m, 1m, 1.5m, 2m, 3m, 5m
Product ID: 47131 (0.5M)/ 47132 (1M)/ 47133 (1.5M)/ 47134 (2M) / 47135 (3M)/ 47136 (5M)
Connector A: RJ45 Male
Connector B: RJ45 Male
Housing Material: Polycarbonate
Connector Plating: Nickel
Pin Construction: Brass
Pin Plating: Gold plated
Dimensions (approx.) WxDxH: 11.6×21.5×8.3mm (0.46×0.85×0.33in)
Length: 0.5m (1.64ft)
Jacket Diameter: 6.0mm (0.24in)
Jacket Material: LSZH
Conductor Material: Copper
Conductor Gauge: 27AWG
Shielding: Aluminium Braid
Supported Bandwidth: 500MHz
Nominal Attenuation: 49.3dB/100m @ 500MHz
Minimum Bend Radius: 72mm (2.84in)
Operating Temperature: -10°C – 60°C (14F – 140°F)
Storage Temperature: -20°C – 75°C (-4F – 167°F)
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
