Connects up to 4 4K source devices to 4 4K displays or projectors in any combination
Supports video resolutions up to 4K@60Hz 4:2:0 8bit
Push buttons, IR remote and Web Gui options for simple, flexible control
Superior smart EDID management for ensuring optimum video performance
2 year warranty
Matrices are multi-port solutions for distributing content from multiple sources to several displays in a variety of configurations.

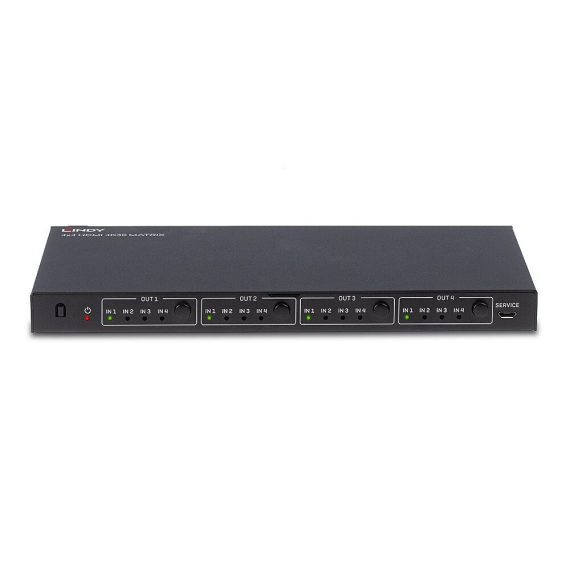

The Lindy 4×4 HDMI 4K30 Matrix is an effective solution for distributing 4K content from up to 4 HDMI source devices, including PCs and media players, to 4 displays.
Supporting 4K@30Hz resolutions, content can be viewed in excellent quality – great for use with digital signage in retail, information display setups in educational buildings or engaging conference installations.
The matrix can be easily controlled with a variety of simple, effective options including push buttons on the main unit or IR. A rack mounting kit is also provided with the matrix for a discreet and secure installation within an AV rack.
Product ID: 38152
AV Interface: HDMI
Interface Standard: HDMI 1.4
Supports Bandwidth: 10.2 Gbps
Maximum Resolution: 4096×2160@30Hz 4:4:4 8bit
HDCP Support: 1.4
Supported Audio: Audio Pass-through
IR Support : 30-60kHz
CEC Support: –
Serial Interface: –
LED / LCD Display: –
Control: IR, Push Button
Special Features: EDID Management
Input: 4 x HDMI (Female)
Output: 4 x HDMI (Female)
Control: RS232 (Female), 3.5mm (Female)
Power: 5.5/2.1mm DC socket
Dimensions WxHxD: 220x105x19mm (8.66×4.13×0.75in)
Housing Material: Metal
Nett Weight: 0.535kg (1.81lb)
Operating Temperature : 0°C – 40°C (32°F – 104°F)
Storage Temperature: -20°C – 60°C (-4°F – 140°F)
Humidity: 20 – 90% (non-condensing)
Power Requirements: 12VDC 2.5A
