Description

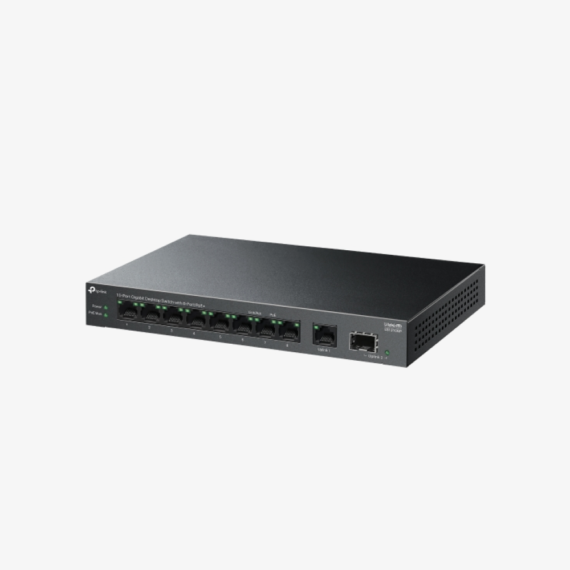

- Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
- 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
Specifications
- Product ID: LS1210GP
- Interface
- 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output)
- 1× Gigabit SFP Port
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Installation
- Desktop
- Wall Mounting
- Physical Security Lock: Yes
- Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
- PoE+ Ports(RJ45)
- Standard: 802.3at/802.3af compliant
- PoE Ports: Ports 1–8, up to 30 W PoE output per port
- PoE Power Budget: 61W
- Dimensions ( W x D x H ): 8.2×4.9×1.0 in (209×126×26 mm)
- Max Power Consumption
- 7.3 W (220/50Hz. no PD connected)
- 76.96 W (220/50Hz. with 61 W PD connected)
- Max Heat Dissipation
- 24.82 BTU/h (no PD connected)
- 261.66 BTU/h (with 61 W PD connected)
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.88 Mpps
- MAC Address Table: 4K
- Jumbo Frame: 16 KB
