Description
- 41 W PoE Budget: Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port.
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Specifications
- Product ID: LS105LP
- Interface
- 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Installation
- Desktop
- Wall Mounting

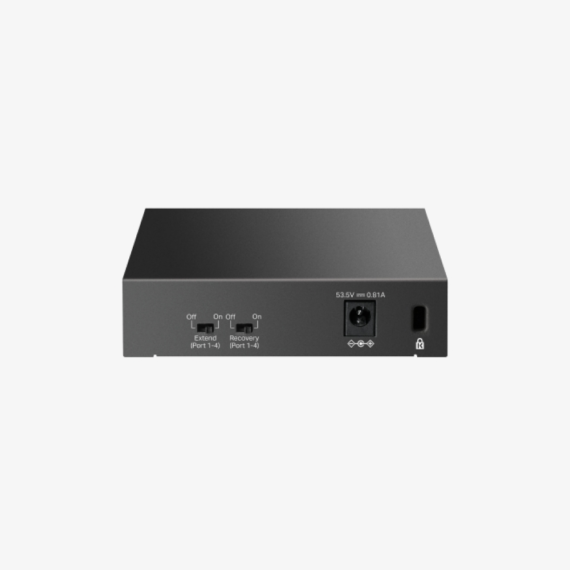

- Power Supply: External Power Adapter (Output: 53.5VDC / 0.81A)
- PoE Ports (RJ45)
- Standard: 802.3 af compliant
- PoE Ports: Ports 1–4, up to 15.4 W PoE output per port
- Power Supply: 41 W
- LED Indicator
- Power
- Link/Act
- PoE Status
- PoE MAX
- Dimensions ( W x D x H ): 3.9×3.9×1.0 in (100×98×25 mm)
- Max Power Consumption
- 2.40 W (220 V/50 Hz no PD connected)
- 46.45 W (220 V/50 Hz with 41 W PD connected)
- Max Heat Dissipation
- 8.15 BTU/h (220 V/50 Hz no PD connected)
- 157.93 BTU/h (220 V/50 Hz with 41 W PD connected)
- Switching Capacity: 1 Gbps
- Packet Forwarding Rate: 0.744 Mpps
- MAC Address Table: 2K
- Jumbo Frame: 2 KB
