Description
- 63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port. *Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
Specifications

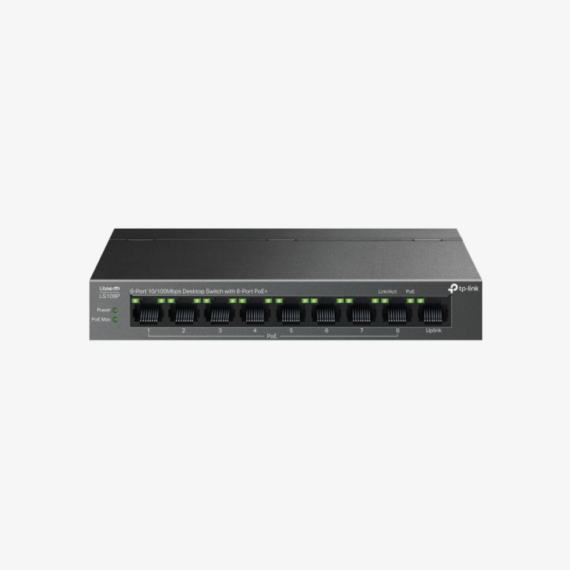

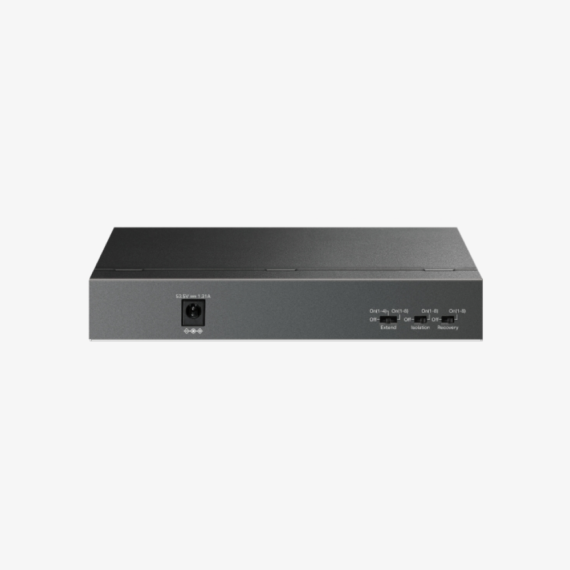

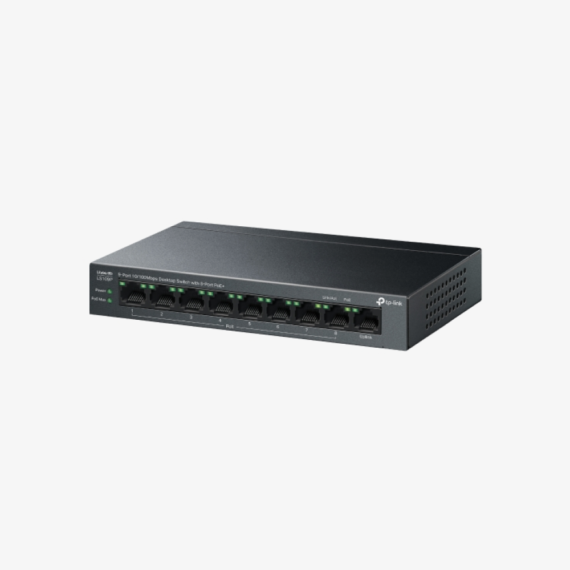

- Product ID: LS109P
- Interface
- 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Installation
- Desktop
- Wall Mounting
- Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
- PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–8, up to 30 W PoE output per port
- Power Supply: 63 W
- LED Indicator
- Power
- Link/Act
- PoE Status
- PoE MAX
- Dimensions ( W x D x H ): 6.7×3.9×1.1 in (171×98×27 mm)
- Max Power Consumption
- 3.67 W (220 V/50 Hz no PD connected)
- 73.24 W (220 V/50 Hz with 63 W PD connected)
- Max Heat Dissipation
- 12.48 BTU/h (220 V/50 Hz no PD connected)
- 249 BTU/h (220 V/50 Hz with 63 W PD connected)
- Switching Capacity: 1.8 Gbps
- Packet Forwarding Rate: 1.3392 Mpps
- MAC Address Table: 2K
- Jumbo Frame: 1.5 KB
