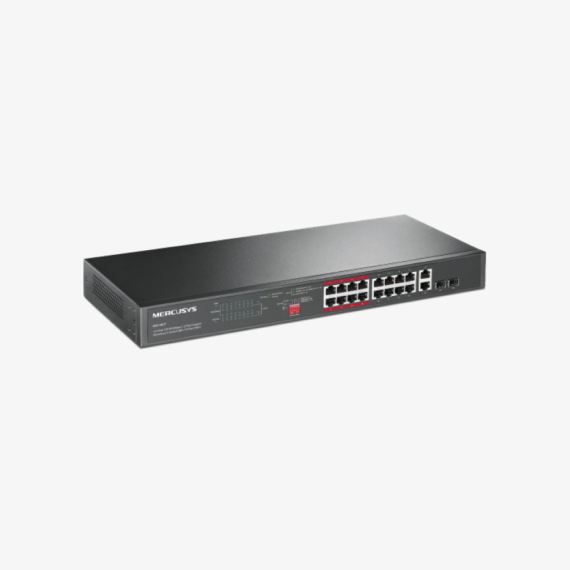

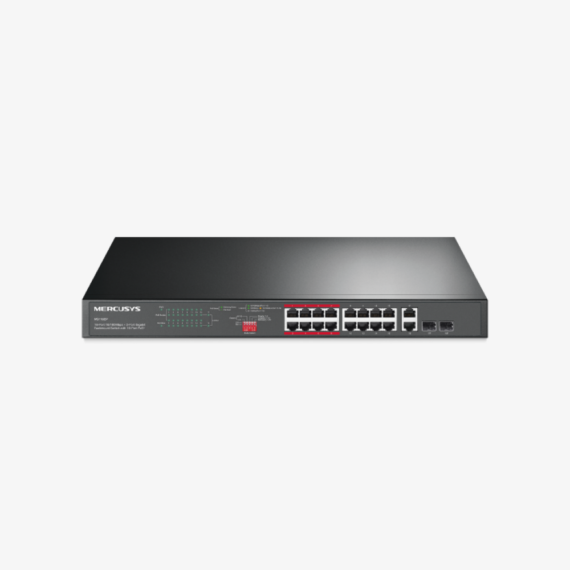

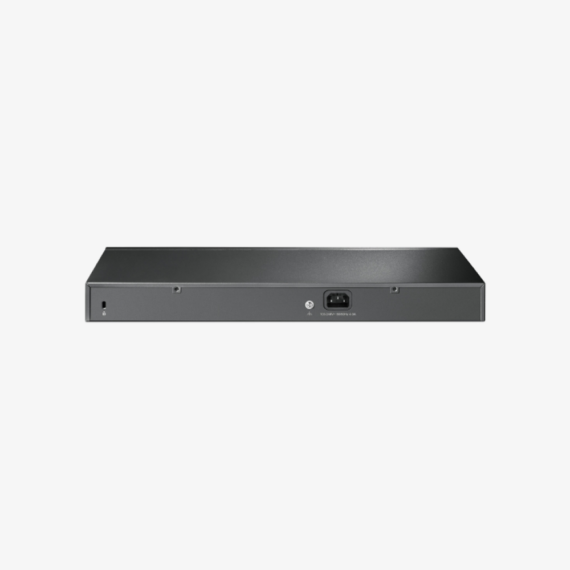

MERCUSYS 16-PORT 10/100MBPS + 2-PORT GIGABIT RACKMOUNT SWITCH WITH 16-PORT POE+ – MS118CP
Description
Specifications
About Brand
Reviews (0)
Description
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
- High PoE power budget with up to 30 W for each PoE port and 190 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Easy to use, with no configuration and installation needed.
Specifications
- Product ID: MS118CP
- Transfer Method: Store-And-Forward
- Advanced Features
- Compatible With IEEE 802.3at/af Compliant PDs
- Extend Mode (Up to 250m PoE power supply and data transmission)
- Priority Mode (Ports 1-8)
- Isolation Mode (Ports 1-16)
- PoE Auto Recovery (Ports 1-16)
- MAC Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control
- Dimensions:17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
- PoE Ports:
- RJ45
- Standard: 802.3at/802.3af compliant
- PoE Ports: Ports 1–16
- PoE Power Budget: 190 W
- Interfaces
- 16 PoE+ 10/100 Mbps RJ45 Ports
- 2× 10/100/1000 Mbps RJ45 Ports
- 2× Combo Gigabit SFP Slots
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF
- Power Supply: 100–240V AC, 50/60 Hz
- Fan Quantity: 2 Fans
- Physical Security Lock: Yes
- Jumbo Frame: 10 KB
- Switching Capacity: 7.2 Gbps
- Mac Address Table: 8 K
- Max Power Consumption
- 13.07 W (220/50Hz. no PD connected)
- 218.91 W (220/50Hz. with 190W PD connected)
- Max Heat Dissipation
- 44.57 BTU/h (no PD connected)
- 746.48 BTU/h (with 190W PD connected)
- Packet Forwarding Rate: 5.36 Mpps
