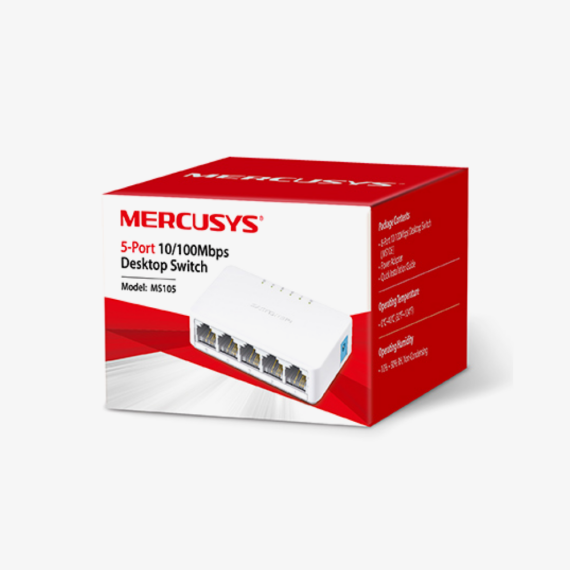

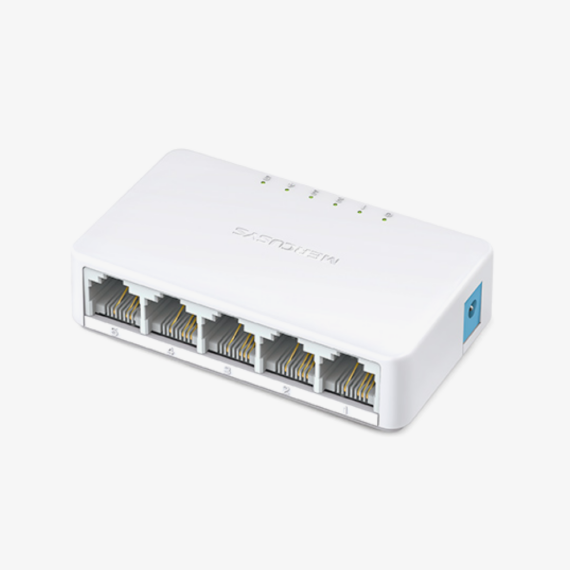

MERCUSYS 5-PORT 10/100MBPS DESKTOP SWITCH – MS105

Specifications

• Product ID: MS105
• Transfer Method: Store and forward
• Dimensions: 82 x 49 x 21 mm
• Interfaces: 5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
• External Power Supply: External power adapter (Output: 5.0VDC/0.6A)
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
• Fan Quantity: Fanless
• Data Rates:
  • 10/100Mbps at half duplex
  • 20/200Mbps at full duplex
• Buffer Capacity: 768Kb
• Jumbo Frame: 2KB
• Switching Capacity: 1Gbps
• LED: Ethernet (1, 2, 3, 4, 5), Power
