Description

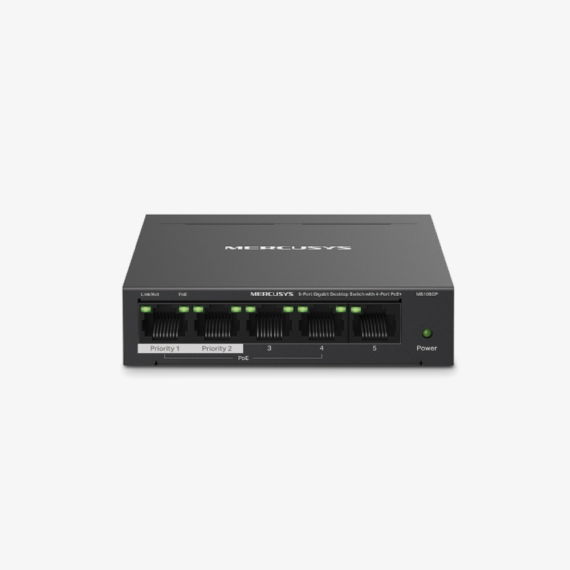

- Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
Specifications
- Product ID: MS105GP
- Transfer Method: Store and Forward
- Management: Plug and Play
- Advanced Features
- 802.3x Flow Control
- IGMP Snooping V1/V2/V3
- Isolation Mode
- Extend Mode
- Dimensions: 99.8*98*25mm
- PoE Ports
- RJ45
- Standard: Compliant with 802.3 af/at Powered Devices
- PoE Ports: Port 1- Port 4
- PoE Power Budget: 65 W
- Interfaces: 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

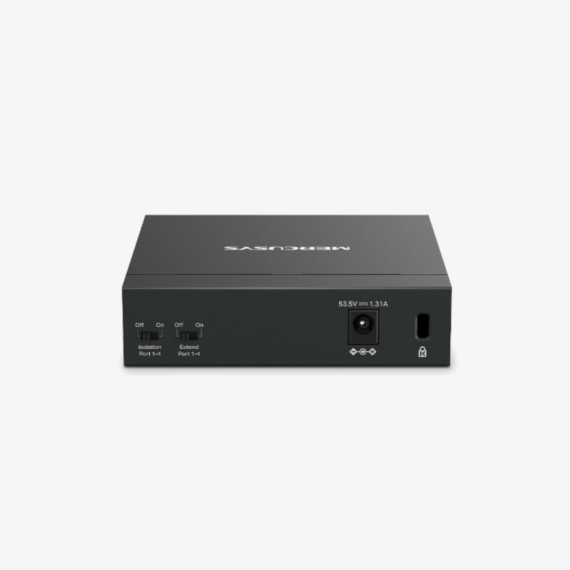

- External Power Supply: External Power Adapter (Output: 53.5V/1.31A)
- Installation
- Desktop
- Wall Mount
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
- Data Rates:
- 10/100/1000 Mbps at Half Duplex
- 20/200/2000 Mbps at Full Duplex
- Jumbo Frame: 16 KB
- LED: Ethernet Ports (1, 2, 3, 4, 5), Power
- Mac Address Table: 2K
- Max Power Consumption:
- 3.13W（220 V / 50 Hz, no PD connected）
- 75.15W（220 V / 50 Hz, with 65W PD connected）
- Max Heat Dissipation:
- 10.64 BTH/h （no PD connected)
- 255.51 BTH/h（with 65W PD connected）
