Description
- Boost Your 5G Speed – Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Convert your 5G network into WiFi and share it with multiple WiFi devices.
- AX3000 Dual Band WiFi 6 – Speeds up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Simultaneous Connection – Enjoy sharing internet access with up to 256 WiFi devices.

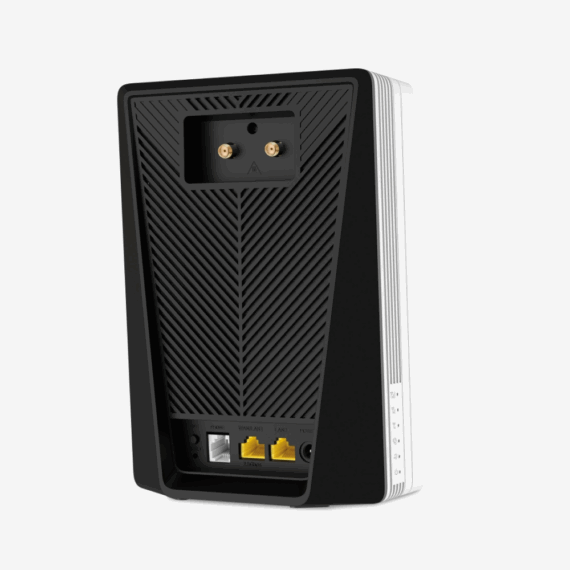

- Maximized Coverage – Advanced internal antennas deliver fast, stable connections, while external ports support additional antennas for extended range.
- 2.5 Gbps WAN/LAN Port – Plug an Ethernet cable into the WAN/LAN port for flexible access if you can’t get a 5G connection.*
- EasyMesh-Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- High-Quality Telephony – Features a phone port for landline use, enabling simultaneous calling and internet access via VoLTE.
- Easy App Control – The MERCUSYS app helps you set up in minutes. Manage your WiFi at home or away through your iOS or Android devices.
Specifications
- Product ID: MB520-5G
- Wi-Fi Class: AX3000
- Wi-Fi (2.4 GHz): 574 Mbps
- Wi-Fi ( 5 GHz): 2402 Mbps
- Frequency: 5 GHz, 2.4 GHz
- Wireless Standards: IEEE 802.11ax/ac/a/b/g/n
- Wireless Security: WPA-PSK / WPA2-PSK / WPA3-SAE
- Operation Modes: 5G/4G/3G Router, Wireless Router
- Cellular Mode:
- 5G Preferred
- 5G Only
- 4G Preferred
- 4G Only
- 3G Only
- Cellular APN
- Data Roaming
- Network Search
- Band Search
- Profile Create
- APN Settings
- ISP File Upgrade
- PIN Management
- WAN Mode
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- DHCP
- Server
- DHCP Client List
- Address Reservation
- NAT Forwarding
- ALG
- Virtual Server
- Port Triggering
- UPnP
- DMZ
- Protocols: IPv4, IPv6
- Data Settings
- Data Statistics
- Data Limit
- Guest Network
- 2.4 GHz Guest Network
- 5 GHz Guest Network
- Parental Controls
- Time Control
- Website Filtering
- DDNS
- DynDns
- NO-IP
- VPN Sever
- Open VPN
- PPTP VPN
- IPSec VPN
- SMS
- Inbox
- New Message
- Outbox
- Drafts
- Security
- IPv4 SPI Firewal
- Service Filtering
- Access Control
- IP & MAC Binding
- IPv6 Firewall
- System Settings
- Time Settings
- LED Control
- Diagnostics
- Firmware Upgrade
- Backup&Restore
- Reboot Schedule
- Administration
- System Log
- Traffic Statistics
- Dimensions: 190 × 130 × 69.7 mm (7.5 × 5.1 × 2.7 in)
- Antenna: Internal
- Button: WPS, Reset Button
- External Power Supply: 12V/2A
- LED
- 1× Power
- 1× Internet
- 1× Phone
- 3× Signal
