Description

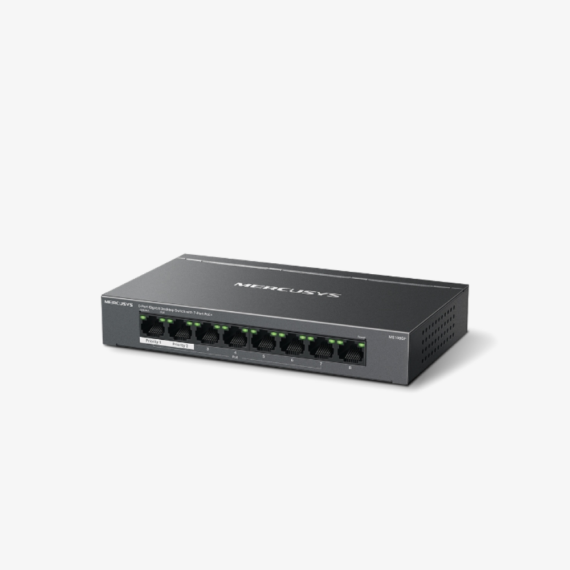

- Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
Specifications
- Product ID: MS108GP
- Dimensions:171*98*27 mm
- PoE Ports
- RJ45
- Standard: Compliant with 802.3 af/at Powered Devices
- PoE Ports: Port 1- Port 7
- PoE Power Budget: 65 W
- External Power Supply: External Power Adapter (Output: 53.5V/1.31A)
- Standards and Protocols: IEEE 802.3x Flow Control
- Data Rates
- 10/100/1000 Mbps at Half Duplex
- 20/200/2000 Mbps at Full Duplex
- Jumbo Frame: 9 KB
- Mac Address Table: 8K
- Max Power Consumption:
- 5.07W（220 V / 50 Hz, no PD connected）
- 77.33W（220 V / 50 Hz, with 65W PD connected）
- Max Heat Dissipation:
- 17.238 BTH/h （no PD connected)
- 262.922 BTH/h（with 65W PD connected）
