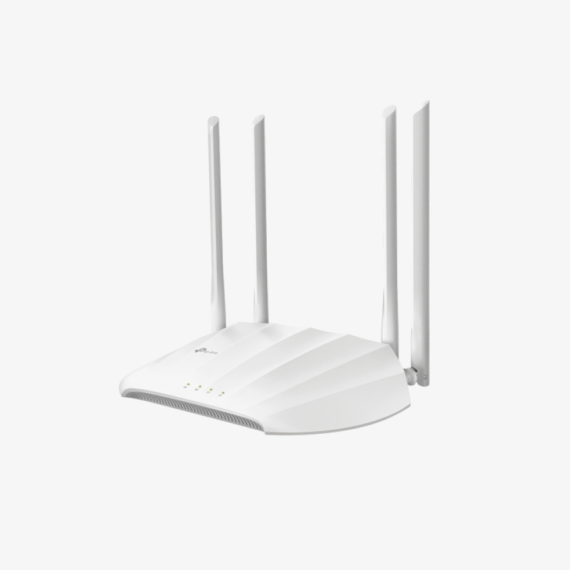

TP-Link AC1200 Wireless Access Point – TL-WA1201

Specifications

• Product ID: TL-WA1201
• Interface

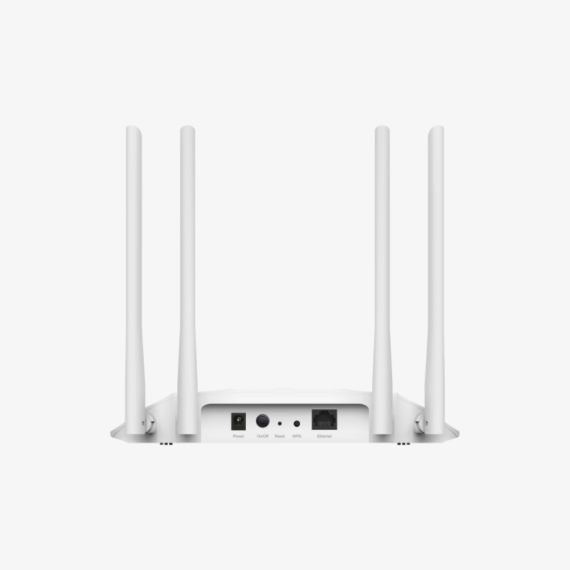

  • 1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)
• Button: Power On/Off Button, WPS Button, Reset Button
• External Power Supply: 12V/1.5A
• Wireless Standards: IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
• Dimensions ( W x D x H )
  • 8.9 × 5.7 × 1.5 in
  • (225×145.5×37 mm)
• Antenna Type: 4 Fixed High Performance Antennas
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
• Transmit Power
  • CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz&5GHz)
• Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
• DHCP: Server, DHCP Client List
• Quality of Service: WMM
• Advanced Functions: Captive Portal
