Lindy USB 3.1 TYPE C Mini Docking Station HDMI/RJ45/PD 43239

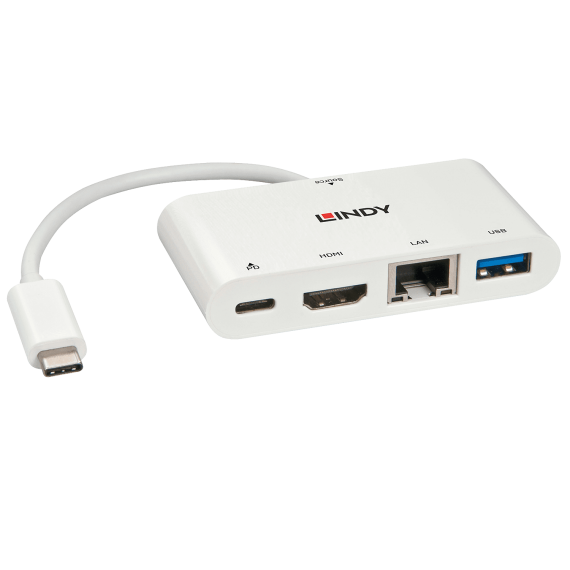

Lindy 43239 USB 3.1 Type C Laptop Mini Dock is a compact and multifunctional solution for connecting Laptops to a range of interfaces including a display, all over a single Type C cable.
Description
Adds a USB 3.0 Type A port, an HDMI and a Gigabit Ethernet port to your notebook
Supports Ultra HD 4K 30Hz for HDMI displays
DisplayPort Alternate Mode
USB Power Delivery PD 3.0 capable up to 100W
2 year warranty

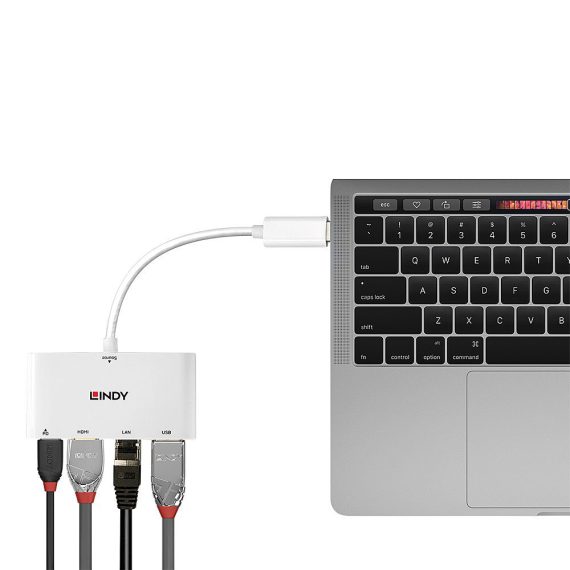

Featuring all the interfaces needed for a standard workstation, this Mini Dock uses a single USB 3.1 Type C cable to connect to a Notebook to simultaneously provide display, power, Gigabit Ethernet and a USB 3.0 SuperSpeed port.
The Mini Dock enables the connection of a monitor to a compatible notebook via HDMI by using DisplayPort alternate mode through the USB Type C port. Resolutions up to Ultra HD 4K 30Hz are supported.
With support for USB Power Delivery (100W) the Mini Dock is also able to provide power to a compatible Notebook via its Type C port.
The Dock’s integrated USB 3.0 port provides up to 5Gbps of data transfer. Perfect for your Type A peripherals such as a hard drive, printer, or webcam.
Specifications
Product ID: 43239
Interface: USB Type C to 1x USB Type A / 1x RJ45 / 1x HDMI
Interface Standard: USB 3.1 Gen 1 / 3.0, Gigabit LAN, HDMI
Supported Bandwidth: 5 Gbps, 10/100/1000Mbps
Maximum Input Resolution: 3840×2160@30Hz
Maximum Output Resolution: 3840×2160@30Hz
Chipset: VL102, VL817, AX88179A and PS176
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support (incl. Apple M1)
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 2.2
Supported Audio: –
Separate Audio Ports: –
Special Features: DisplayPort Alternate Mode
Connectors
Inputs: 1 x USB Type C (Male)
Outputs: 1 x USB Type A (Female), 1 x RJ45 (Female), 1 x HDMI (Female)
