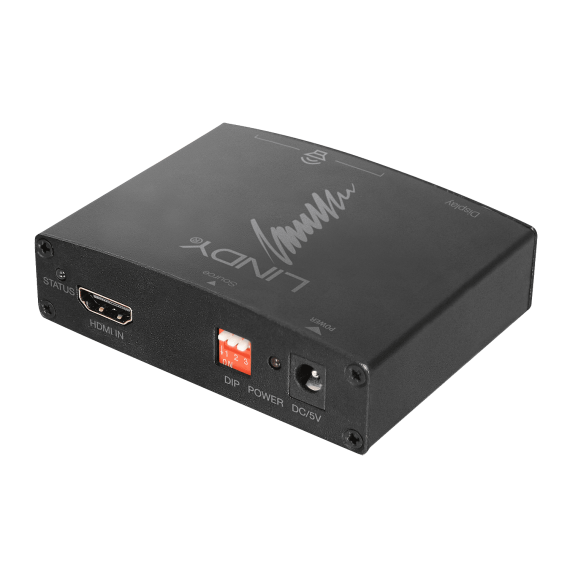

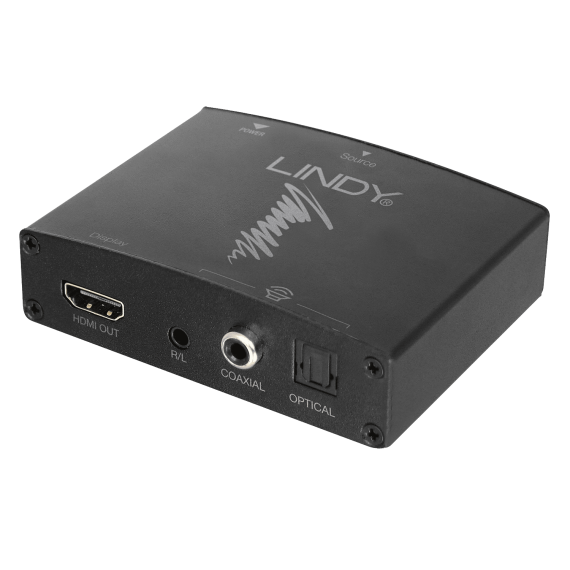

Lindy HDMI 4K Audio Extractor with Bypass 38167
Lindy 38167 is an HDMI Audio Extractor is an effective solution for extracting audio from a HDMI source to both digital and analogue audio devices, while sending the video signal to a 4K display or projector.
Extract stereo or multi-channel audio from a HDMI signal
Support resolutions up 4096×2160@30Hz 4:4:4 8bit
Supports various audio formats including LPCM, Dolby Digital 2/5.1 and DTS-HD
2 year warranty
The extractor supports high quality 4096×2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to both digital formats via Optical and HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require seperate speakers.
Featuring a neat switch to fully control which source audio EDID is used and the ability to be powered via USB from the source or display device, the extractor provides simple use and installation, great for both AV installations in the home or in commercial settings. With a minimalist and stylish design, it can also be hidden out of sight to compliment the popular trend of discreet AV installations.
Product ID: 38167
Video Interface: HDMI
Interface Standard: 1.4
Supported Bandwidth: 10.2Gbps
Maximum Resolution: 4096×2160@30Hz 4:4:4 8bit
HDCP Support: HDCP 1.4
Audio Interface: SPDIF, Toslink (Optical), 3.5mm Stereo
Toslink (Optical): 2CH LPCM, Dolby Digital 2/5.1, DTS-HD
Coaxial: 2CH LPCM, Dolby Digital 2/5.1, DTS-HD
3.5mm: 2CH LPCM
Maximum Supported Audio Sample Rate: 192kHz (Via EDID Copy)
Input Impedance: 100Ω
Output Impedance: 100Ω
Output Voltage: –
Frequency Response: ±0.1dB
Signal to Noise Ratio: –
Special Features: CEC Pass-through
Input: HDMI Type A (Female)
Output: HDMI Type A (Female)
Power: 5.5/2.1mm DC Socket
